Standard Roller Chains - Other Standards

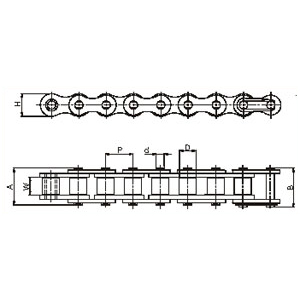

Intl. Ref. No. Diamond Chain No. Pitch (P) Width Betwwen Inner Plates (W) (Min) Roller Dia (D) (Max) Plate Height (H) (Max) Bearing Pin Dia (D) (Max) Width Over Bearing Pin (A) (Max) Width Over Joint Fastener (B) (Max) Tensile Strength (Kgf) (Min)
081 D08001 12.70 3.30 7.75 9.55 3.64 9.75 11.11 820
- D08101 12.70 4.88 7.75 9.55 3.63 11.70 12.75 820
08MA D08201 12.70 5.21 8.51 11.65 4.47 14.23 16.00 1820
083 D08G01 12.70 4.88 7.75 10.30 4.08 12.35 13.85 1225
J 415 F D08M01 12.70 5.01 7.75 10.00 4.08 14.35 15.45 1600
10MA D10001 15.875 6.48 10.16 14.56 5.08 15.55 17.15 2700
- *D12301 19.05 12.72 14.24 18.80 7.92 31.40 - 6000
12BH D12H 01 19.05 11.68 11.91 15.90 6.06 24.75 26.65 4002
- D12601 19.05 9.40 11.91 18.04 5.94 22.30 23.75 3180
- *D14001 22.225 14.28 15.60 23.58 7.92 36.25 - 9000
- D160010005 25.40 35.00 15.88 20.60 8.27 53.75 55.55 6120
- D160010011 25.40 13.05 15.75 20.60 8.14 30.10 36.50 6120
- D560010001 88.90 53.34 53.98 80.20 34.32 117.80 130.00 100000
- SP1729 58.34 21.30 18.26 26.50 10.19 40.85 44.50 4550

* Straight Contour Chains

Note: Wherever international reference is not indicated models have been developed for specific requirements.

Note : In process of making the product better the actual product may differ in design From the actual displayed product.
